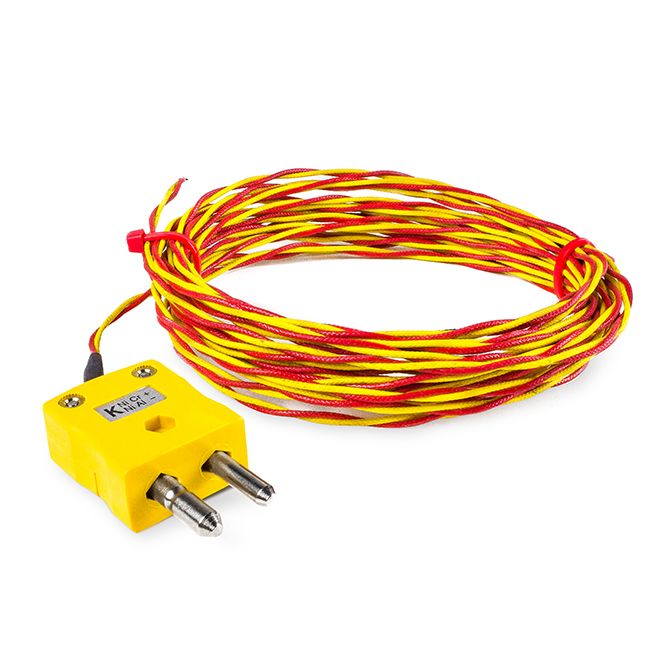

Termopares de punta soldada expuesta de fibra de vidrio de alta temperatura ANSI con terminacin de enchufe estndar
Cambiar moneda
Necesita calibrar su sensor de temperatura? | Trazable a los estndares de calibracin ISO17025 (UKAS), Labfacility ofrece la opcin de una calibracin trazable de 3 o 5 puntos utilizando nuestras instalaciones de calibracin internas. Tenga en cuenta que si agrega una opcin de calibracin a su pedido, se comunicar con usted con respecto a la informacin de entrega. |
|---|
Caractersticas tcnicas
| Descripción General | Fast response, welded exposed junction. Good temperature resistance (not suitable in fluids). |
|---|---|
| Tipo de termopar | K |
| Thermocouple Junction | Exposed |
| Longitud del cable | 5, 10 or 20-metre-long |
| Cable Type | high temperature glassfibre insulated twisted cable |
| Núcleo / hebras | 1/0.711mm conductors (21awg) |
| Cable Termination | Standard plug termination |
| Max. Temperatura | +700°C |
| Min. Temperatura | 0°C |
| Tolerancia | Tolerance to ANSI MC96.1 Class 2 |
| Estándares cumplidos | Colour code to ANSI MC96.1 |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Why is Calibration so important?
The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
