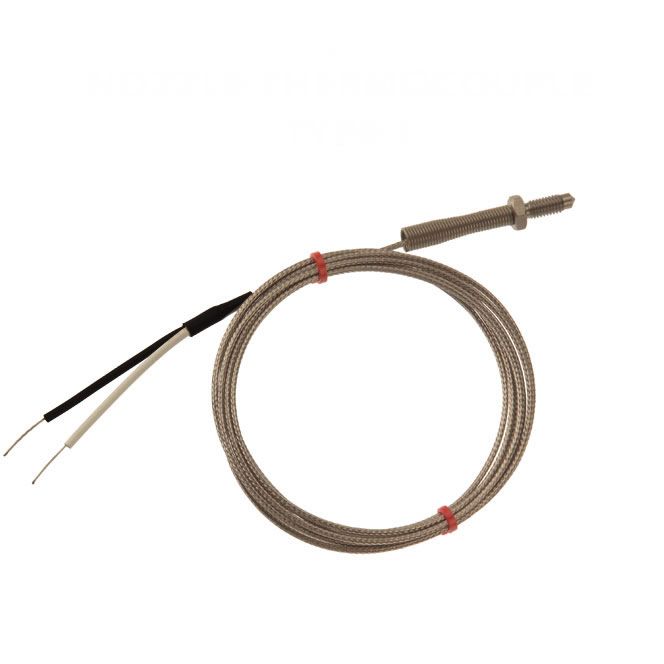

Termopar de boquilla IEC, cable aislado en fibra de vidrio con trenza de acero inoxidable que termina en colas desnudas, enchufe en miniatura o estndar - tipo K, J
Cambiar moneda
SKU
XE-3410
15,52 €
12,93 €
- Termopar alojado en un perno roscado de acero inoxidable
- Rosca M6x1mm
- Punta a tierra para una respuesta rápida
- Nominal 350°C
- Plomo aislado con fibra de vidrio de 2 metros con sobrebrada de acero inoxidable, 7/0,2 mm
- Tipo J o K disponible
- Tipo K con opción de terminación de enchufe estándar
| Descripción General | Thermocouple housed in a stainless steel threaded bolt |
|---|---|
| Tipo de termopar | K or J |
| Thermocouple Junction | Grounded hot junction for fast response, M6x1mm thread |
| Diámetro de la sonda | 4.5mm |
| Longitud de la sonda | 150mm |
| Longitud del cable | 1, 2 or 5m |
| Cable Type | Glassfibre insulated lead with stainless steel overbraid |
| Núcleo / hebras | 7/0.2mm |
| Cable Termination | Bare wire or standard plug |
| Tipo de terminación | Bare tails, Miniature or Standard Plug (with cable clamps) |
| Max. Temperatura | +350°C |
| Min. Temperatura | -60°C |
| Estándares cumplidos | IEC |
| Dimensiones | 25x13mm shim (0.2mm thick) |
| Thread | M6 x 1mm thread |
