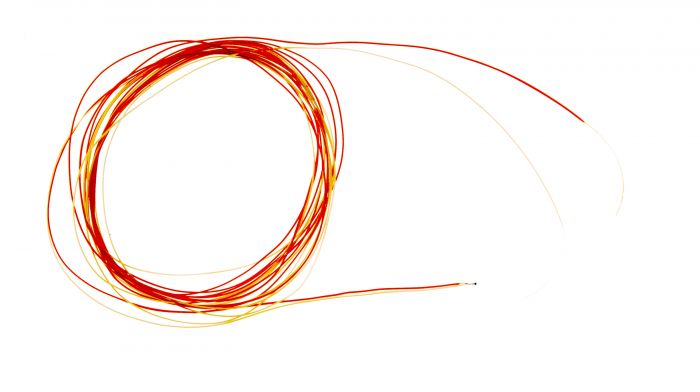

Termopar de unin expuesta de calibre fino ANSI con aislamiento de PFA (conductores de 0,076 mm) - Tipo K
Cambiar moneda
Necesita calibrar su sensor de temperatura? | Trazable a los estndares de calibracin ISO17025 (UKAS), Labfacility ofrece la opcin de una calibracin trazable de 3 o 5 puntos utilizando nuestras instalaciones de calibracin internas. Tenga en cuenta que si agrega una opcin de calibracin a su pedido, nos pondremos en contacto con usted con respecto a la informacin de entrega. |
|---|
Caractersticas tcnicas
| Descripción General | Fine Gauge Exposed Welded Tip Thermocouple |
|---|---|
| Tipo de sensor | Fast response, welded tip exposed junction |
| Tipo de termopar | K |
| Thermocouple Junction | Exposed |
| Longitud del cable | 300mm, 1m |
| Cable Type | Teflon® PFA insulated wires |
| Núcleo / hebras | 0.003” (0.076mm) conductors |
| Cable Termination | Bare tails |
| Max. Temperatura | +260°C |
| Min. Temperatura | -75°C |
| Estándares cumplidos | ANSI colour coded |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Why is Calibration so important?
The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
