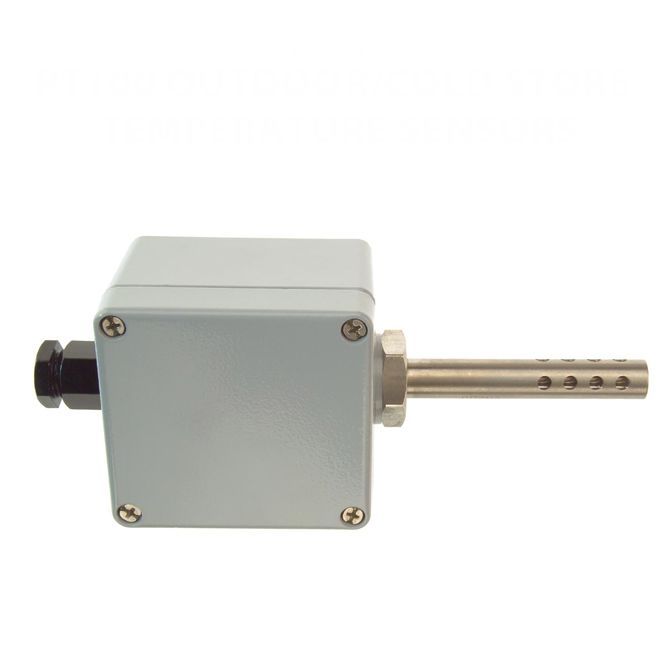

Pt100 Sensores de temperatura para exteriores / cmaras frigorficas - Tipo PRT - Elemento nico
Cambiar moneda
SKU
XE-3673-001
190,97 €
159,14 €
- Buy 2 - 14 for 150,13 € 125,11 € each
- Buy 15+ for 130,14 € 108,45 € each
Un solo elemento de 4 hilos, que permite la conexin a cualquier instrumento Pt100 de 2, 3 o 4 hilos.
Pt100 (100 ohmios @ 0 C) segn IEC 751, Clase B, elemento nico de 4 hilos
Caractersticas tcnicas
| Descripción General | Weatherproof IP67 rated wall mounting Pt100 for accurate outdoor air temperature sensing |
|---|---|
| Tipo de sensor | single element, Pt100 (100 Ohms @ 0°C) to IEC 751, Class B |
| Cubierta | Painted Die-Cast Aluminium Housing L80 x W74 x H54mm |
| Element | Pt100, class B to IEC 751 |
| Material de la funda | Perforated 316 stainless steel probe, 12.7mm x 75mm |
| Gland | M20 cable entry gland |
| Max. Temperatura | 150°C |
| Min. Temperatura | -50°C |
| IP Rating | IP67 |
| Transmitter | Optional transmitter device has an ambient operating range of -40 to +85°C |
| Numero de alambres | 4 |
