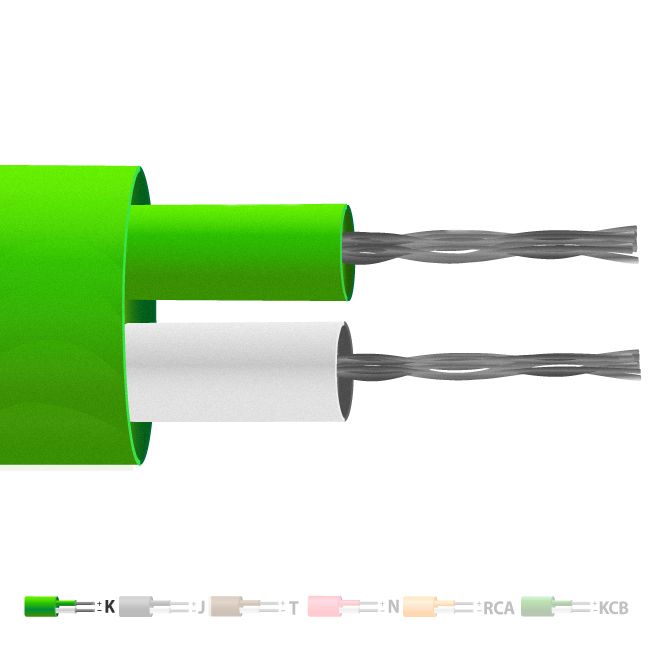

Cable / alambre de termopar (IEC) Tipo K PVC aislado par plano
El cable de compensacin se asemeja a la caracterstica termoelctrica del termopar relevante en un rango de temperatura ambiente limitado, de 0 a 80 C tpicamente. Dado que estos cables estn hechos de materiales de bajo costo, se pueden lograr ahorros de costos en las instalaciones de la planta en comparacin con el uso de un verdadero cable de extensin de termopar.
Caractersticas tcnicas
| Descripción General | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Longitud del cable | 10, 25, 50, 100 or 200m |
| Cable Type | Flat pair construction |
| Núcleo / hebras | 7/0.2mm / 13/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Conductor Cross Section 13/0.2 (mm2) | 0.408 |
| Outer Colour | Green |
| + Colour | Green |
| - Colour | White |
| Drain Wire | No |
| Material de aislamiento | PVC Insulated |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperatura | +105°C |
| Min. Temperatura | -10°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Estándares cumplidos | Colour code (cores & jacket) to IEC-584-3 |
| Tipo de termopar | K |
| Tolerancia | Class 2 |
