Termopar de bayoneta ajustable IEC, cable trenzado de acero inoxidable de fibra de vidrio - tipo K,J
Cambiar moneda
SKU
XE-3405
23,92 €
19,93 €

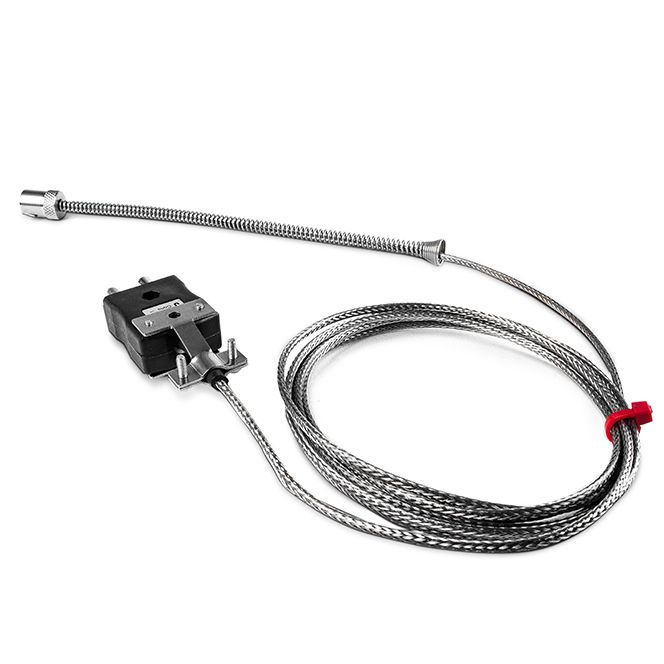

Termopar de bayoneta ajustable tipo K o J IEC y tipo J BS
Termopar de bayoneta ajustable con resorte de 200 mm con tapa de fijacin ajustable (11,5 mm de dimetro interno de una sola ranura).
Caractersticas tcnicas
| Descripción General | Thermocouple with adjustable insertion depth |
|---|---|
| Tipo de sensor | 6.0mm diameter tip |
| Tipo de termopar | K, J IEC J BS |
| Thermocouple Junction | Grounded tip for fast response |
| Longitud del cable | 2, 3m |
| Cable Type | Glassfibre insulated lead with stainless steel overbraid |
| Núcleo / hebras | 7/0.2mm |
| Cable Termination | Bare wire or standard plug |
| Max. Temperatura | +350°C |
| Min. Temperatura | -60°C |
| Estándares cumplidos | IEC-584-3 / BS |
| Bayonet cap | 11.5mm I.D. single slot |
| Tipo de conector | Plug |
| Tamaño del conector | Standard |
| Dimensiones | 25x13mm shim (0.2mm thick) |
| Thread | M6 x 1mm thread |
| Spring | 200mm |
