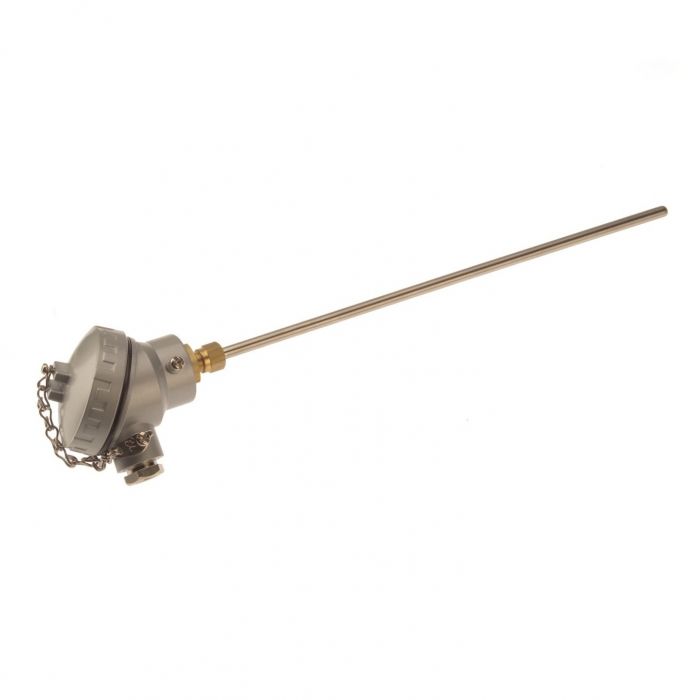

Termopares con aislamiento mineral con cabezal terminal KNS compacto - Tipo K
Cambiar moneda
Necesita calibrar su sensor de temperatura? | Trazable a los estndares de calibracin ISO17025 (UKAS), Labfacility ofrece la opcin de una calibracin trazable de 3 o 5 puntos utilizando nuestra instalacin de calibracin interna, puede seleccionar cualquier punto de temperatura entre -10 C y +200 C. Tenga en cuenta que si agrega una opcin de calibracin a su pedido, nos pondremos en contacto con usted con respecto a la informacin de entrega. |
|---|
| Descripción General | Flexible mineral insulated probe with 310 stainless steel sheath |
|---|---|
| Tipo de sensor | Type ‘K’ (Nickel Chromium/Nickel Aluminium) to IEC 584 |
| Thermocouple Junction | Insulated hot junction |
| Element/hot junction | Single element, junction insulated from sheath (offers protection against spurious electrical signals) |
| Diámetro de la sonda | 6.0mm diameter |
| Material de la funda | 310 stainless steel sheath |
| Head Type | KNS, Cast aluminium finish, screw type lid with chain. Head fitted 2-way ceramic block |
| Gland | M16 x 1.5mm Plated brass gland fitted |
| Max. Temperatura | +1100°C (Max temp of head is 170°C) |
| Min. Temperatura | -40°C |
| IP Rating | IP67 |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Why is Calibration so important?
The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
