Tipo J Cable de termopar de par plano aislado de fibra de vidrio / alambre (IEC)
Cambiar moneda
SKU
XE-2263
7,92 €
6,60 €

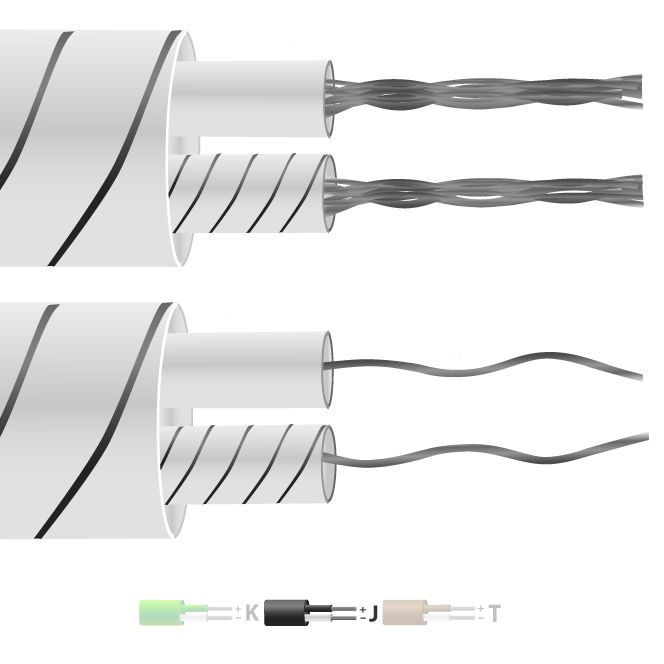

Tipo J Cable de termopar de par plano aislado de fibra de vidrio / alambre (IEC)
Construcción de par plano aislado con fibra de vidrio, conductores colocados planos, fibra de vidrio aislada con fibra de vidrio en general, barnizado de silicona en todas partes. Buena resistencia a la temperatura pero no es adecuado donde los fluidos están presentes.
| Descripción General | Good temperature range but will not prevent ingress of fluids. Fairly flexible but does not provide good mechanical protection. |
|---|---|
| Longitud del cable | 10m, 25m, 50m, 100m |
| Cable Type | Flat pair cable |
| Núcleo / hebras | 1/0.2mm, 1/0.315mm, 7/0.2mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Black & White |
| + Colour | Black |
| - Colour | White |
| Drain Wire | No |
| Material de aislamiento | Glassfibre insulated |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 19.3 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 7.8 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 2.7 |
| Max. Temperatura | +350°C (short periods up to 400°C) |
| Min. Temperatura | -60°C |
| + Conductor | Iron |
| - Conductor | Constantan |
| Screen | No |
| Estándares cumplidos | Colour code (cores & jacket) to IEC-584-3 |
| Tipo de termopar | J |
| Tolerancia | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
