Tipo J PTFE aislado Twin Twisted Pair Thermocouple Cable / Alambre (IEC)
Cambiar moneda
SKU
XE-2242
10,28 €
8,57 €

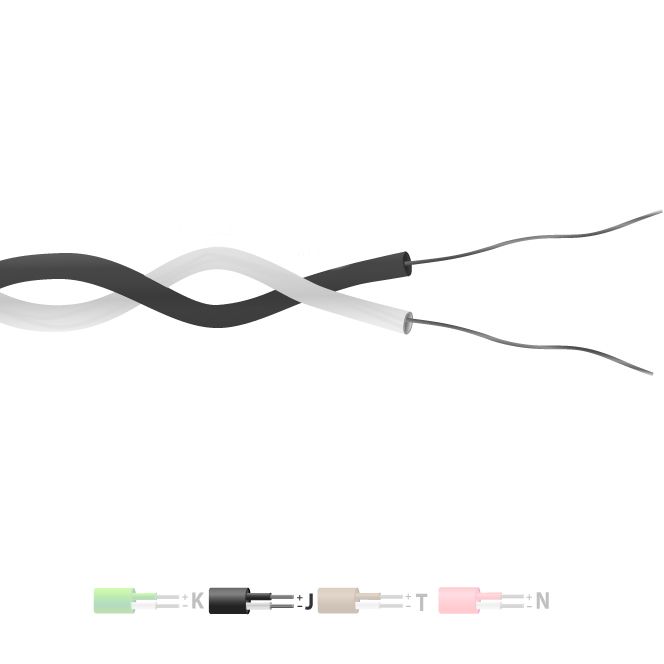

Tipo J PTFE aislado Twin Twisted Pair Thermocouple Cable / Alambre (IEC)
Par trenzado gemelo aislado con PTFE. El PTFE tiene una buena resistencia mecánica y flexibilidad, resistente a aceites, ácidos y otros fluidos adversos.
Características técnicas
| Descripción General | Resistant to oils, acids adverse agents and fluids. Good mechanical strength and flexibility. |
|---|---|
| Longitud del cable | 10m, 25m, 50m, 100m |
| Cable Type | Twin twisted pair for extending or making simple thermocouples |
| Núcleo / hebras | 1/0.2mm , 7/0.2mm, 1/0.315mm, 1/0.508mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 1/0.508 (mm2) | 0.203 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| + Colour | Balck |
| - Colour | White |
| Drain Wire | No |
| Material de aislamiento | PTFE insulated |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 19.3 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 7.8 |
| Loop Resistance 1/0.508 (Ohms per combined metre) | 3.0 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 2.7 |
| Max. Temperatura | +260°C |
| Min. Temperatura | -75°C |
| + Conductor | Iron |
| - Conductor | Constantan |
| Screen | No |
| Estándares cumplidos | Colour code (cores & jacket) to IEC-584-3 |
| Tipo de termopar | J |
| Tolerancia | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
