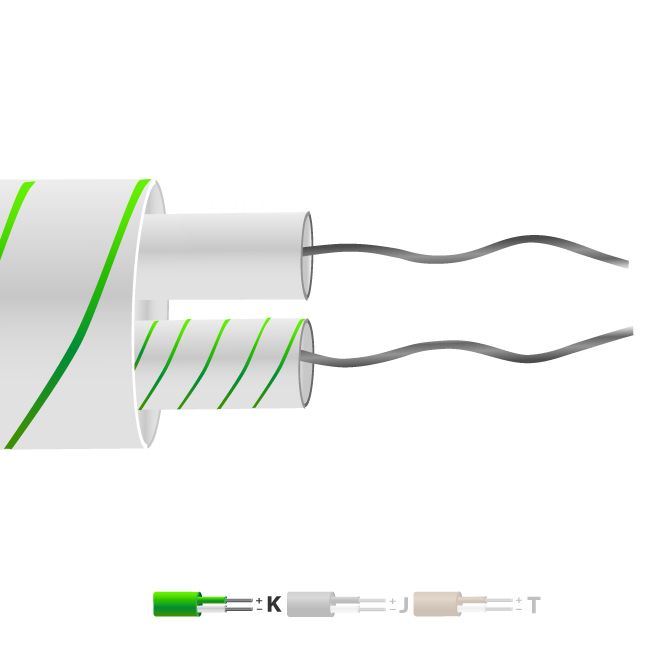

Tipo K Fibra de vidrio aislado Termopar plano Cable / alambre (IEC)
Construccin de par plano aislado con fibra de vidrio, conductores colocados planos, fibra de vidrio aislada con fibra de vidrio en general, silicona barnizada en todas partes. Buena resistencia a la temperatura, pero no es adecuado donde hay fluidos presentes.
| Descripción General | Good temperature range but will not prevent ingress of fluids. Fairly flexible but does not provide good mechanical protection. |
|---|---|
| Longitud del cable | 5m, 10m, 25m, 50m, 100m |
| Cable Type | Flat pair cable |
| Núcleo / hebras | 1/0.3mm / 1/0.508mm / 7/02.mm / 1/0.2mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 1/0.508 (mm2) | 0.203 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Green & White |
| + Colour | Green |
| - Colour | White |
| Drain Wire | No |
| Material de aislamiento | Glassfibre insulated |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 31.8 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 12.8 |
| Loop Resistance 1/0.508 (Ohms per combined metre) | 4.9 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperatura | +350°C (short periods up to 400°C) |
| Min. Temperatura | -60°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Estándares cumplidos | Colour code (cores & jacket) to IEC-584-3 |
| Tipo de termopar | K |
| Tolerancia | Class 2 |
