Tipo K PFA aislado Termopar plano de par cable / alambre (ANSI)
Cambiar moneda
SKU
XE-2800
15,77 €
13,14 €

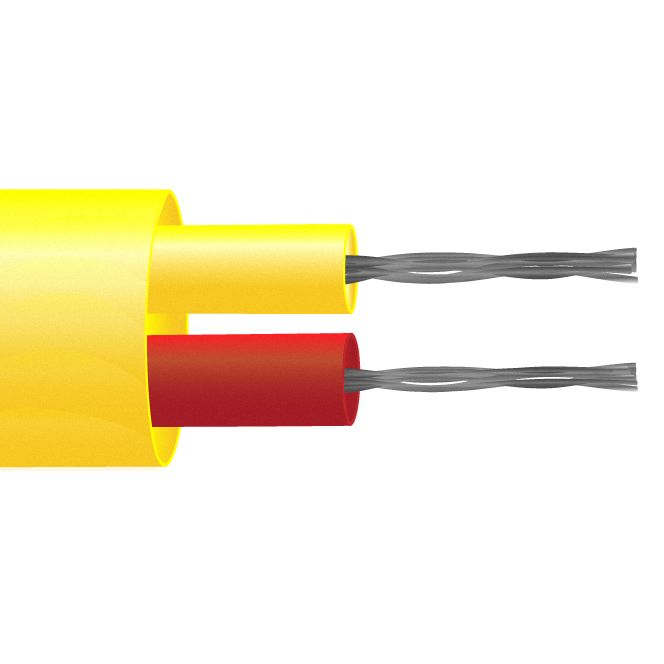

Tipo K PFA aislado Termopar plano de par cable / alambre (ANSI)
PFA Tefln aislado par plano. PFA Teflon tiene una buena resistencia mecnica y flexibilidad, resistente a aceites, cidos y otros fluidos adversos, gases, vapor y presin.
Caractersticas tcnicas
| Descripción General | Resistant to oils, acids other adverse agents and fluids. Good mechanical strength and flexibility. |
|---|---|
| Longitud del cable | 10, 25, 50, 100m |
| Cable Type | Single pair of PFA insulated conductors, laid flat with PFA jacket |
| Núcleo / hebras | 1/0.2mm, 1/0.3mm, 1/0.5mm,7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Yellow |
| + Colour | Yellow |
| - Colour | Red |
| Drain Wire | No |
| Material de aislamiento | PFA Insulated |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperatura | +260°C |
| Min. Temperatura | -75°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Estándares cumplidos | Colour code (cores & jacket) to ANSI MC96.1 |
| Tipo de termopar | K |
| Tolerancia | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
