Tipo K PFA aislado doble par trenzado termopar cable / alambre (ANSI)
PFA Teflon par trenzado doble para extender o hacer termopares simples. PFA Teflontiene una buena resistencia mecnica y flexibilidad, resistente a aceites, cidos y otros fluidos adversos, gases, vapor y presin.
Caractersticas tcnicas
| Longitud del cable | 10m, 25m, 50m, 100m |
|---|---|

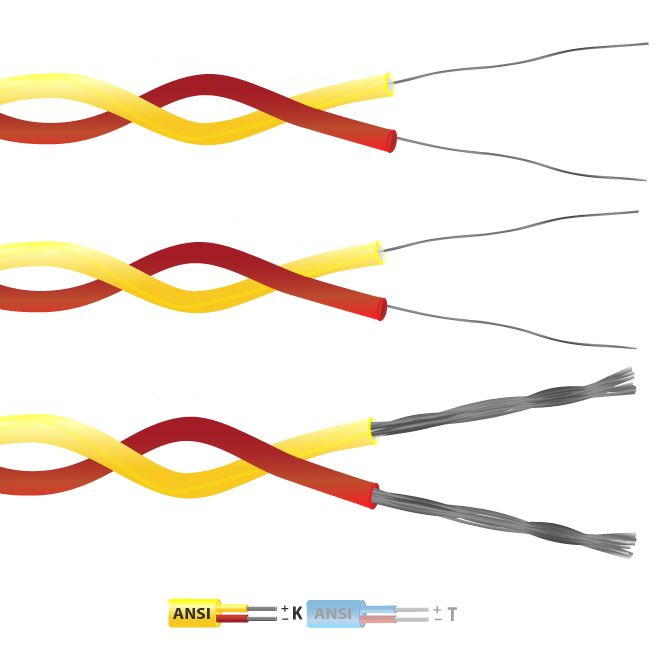

| Cable Type | Single pair of PFA insulated conductors twisted together |
| Núcleo / hebras | 1/0.2mm, 1/0.3mm or 7/0.2mm |
| Conductor Cross Section 1/0.2 (mm2) | 0.032 |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| + Colour | Yellow |
| - Colour | Red |
| Drain Wire | No |
| Material de aislamiento | PFA Teflon® |
| Loop Resistance 1/0.2 (Ohms per combined metre) | 31.8 |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 12.8 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperatura | +260°C |
| Min. Temperatura | -75°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Estándares cumplidos | Colour code (cores & jacket) to ANSI MC96.1 |
| Tipo de termopar | K |
| Tolerancia | Class 1 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
