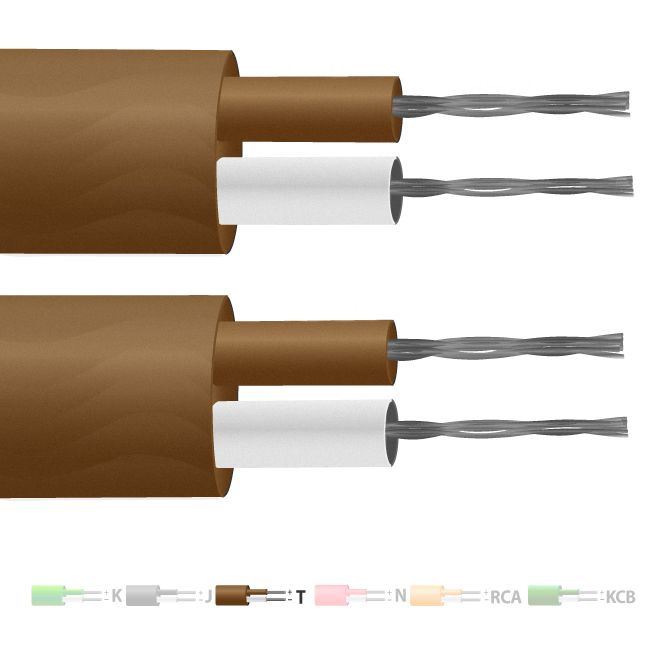

Cable / alambre de termopar plano de par plano con aislamiento de PVC tipo T (IEC)
Cambiar moneda
SKU
XE-2300
5,89 €
4,91 €
Caractersticas tcnicas
| Descripción General | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Longitud del cable | 10, 25, 50, 100 & 200m |
| Cable Type | Flat pair construction |
| Núcleo / hebras | 7/0.2mm or 13/0.2mm |
| Conductor Cross Section 1/0.315 (mm2) | 0.078 |
| Conductor Cross Section 1/0.508 (mm2) | 0.203 |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Conductor Cross Section 13/0.2 (mm2) | 0.408 |
| Outer Colour | Brown |
| + Colour | Brown |
| - Colour | White |
| Drain Wire | No |
| Material de aislamiento | PVC Insulated |
| Loop Resistance 1/0.315 (Ohms per combined metre) | 6.5 |
| Loop Resistance 1/0.508 (Ohms per combined metre) | 2.5 |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 2.3 |
| Loop Resistance 13/0.2 (Ohms per combined metre) | 1.2 |
| Max. Temperatura | +105°C |
| Min. Temperatura | -10°C |
| + Conductor | Copper |
| - Conductor | Constantan |
| Screen | No |
| Estándares cumplidos | Colour code (cores & jacket) to IEC-584-3 |
| Tipo de termopar | T |
| Tolerancia | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
