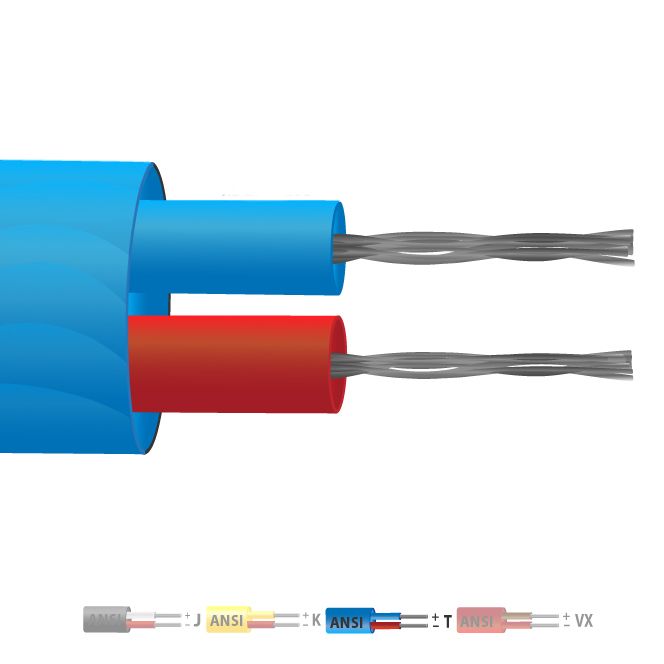

Cable / cable / cable de termopar de par plano con aislamiento de PVC tipo T (ANSI)
Cambiar moneda
SKU
XE-2808
5,89 €
4,91 €
Caractersticas tcnicas
Descripción General | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
---|---|
Longitud del cable | 10, 25, 50, 100 & 200m |
Cable Type | Flat pair construction |
Núcleo / hebras | 7/0.2mm |
Conductor Cross Section 7/0.2 (mm2) | 0.219 |
Outer Colour | Blue |
+ Colour | Blue |
- Colour | Red |
Drain Wire | No |
Material de aislamiento | PVC Insulated |
Loop Resistance 7/0.2 (Ohms per combined metre) | 2.3 |
Max. Temperatura | +105°C |
Min. Temperatura | -10°C |
+ Conductor | Copper |
- Conductor | Constantan |
Screen | No |
Estándares cumplidos | Colour code (cores & jacket) to ANSI MC96.1 |
Tipo de termopar | T |
Tolerancia | Class 2 |
