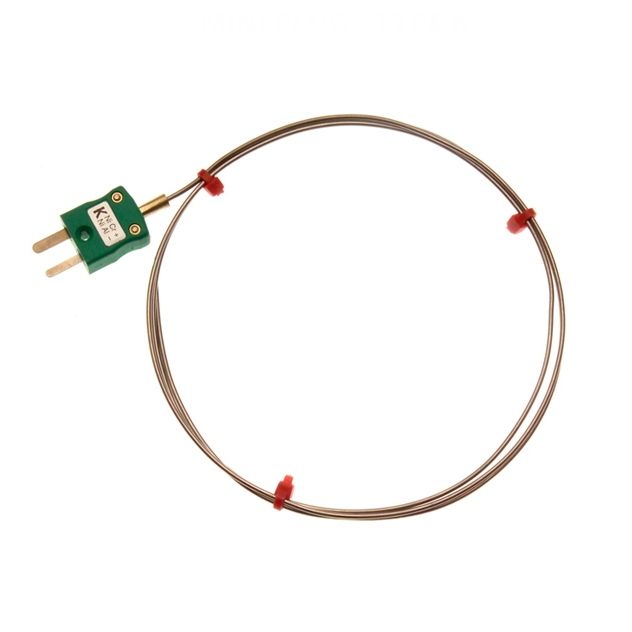

Termopar con aislamiento mineral con enchufe en miniatura IEC - Tipos K,J,T,N
Cambiar moneda
SKU
XE-3216
19,70 €
16,42 €
26,50 €
22,08 €
| Descripción General | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Tipo de sensor | Mineral Insulated |
| Tipo de termopar | K, J, T & N |
| Element/hot junction | Single element, junction insulated from sheath (offers protection against spurious electrical signals) |
| Diámetro de la sonda | 1.0, 1.5, 2.0 & 3.0mm |
| Longitud de la sonda | 150, 250, 500 & 1000mm |
| Material de la funda | K - Stainless steel 310, J - Stainless steel 321, T - Stainless steel 316, N - Nicrosil |
| Tipo de terminación | Miniature flat pin plug, colour coded in accordance IEC 584 |
| Max. Temperatura | K +1100°C for 1.5 & 3.0mm diameters +750°C for 1.0mm diameter, J +760°C, T +400°C, N +1300°C. Plug Max. temperature range: 200°C |
| Min. Temperatura | K -40°C, J -100°C, T -100°C, N -100°C |
| Estándares cumplidos | IEC 584 |
| Tipo de conector | Plug |
| Tamaño del conector | Miniature |
| Color | K - Green, J - Black, T - Brown, N - Pink |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Why is Calibration so important?
The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
