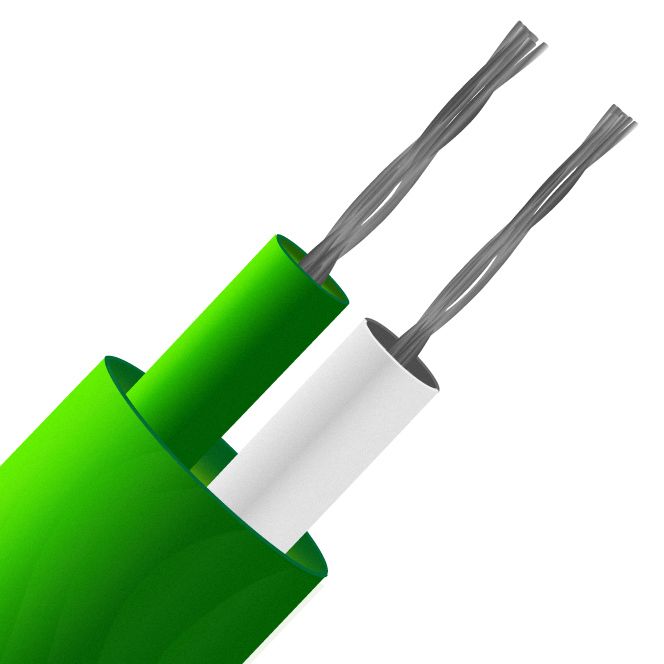

Silicone Rubber Insulated Thermocouple Cable / Wire (IEC) Type K
Cambiar moneda
SKU
XE-2164
21,74 €
18,12 €
Good electrical and mechanical properties, highly flexible, resistant to oils, acids and other adverse fluids. Good heat resistance to 200°C although not suitable for direct use in high pressure steam applications.
Specifications
| Descripción General | Good electrical and mechanical properties, highly flexible, resistant to oils, acids and other adverse fluids. Good heat resistance to 200°C although not suitable for direct use in high pressure steam applications. |
|---|---|
| Longitud del cable | 10m, 25m, 50m, 100m |
| Núcleo / hebras | 7/0.2mm |
| Outer Colour | Green |
| + Colour | Green |
| - Colour | White |
| Drain Wire | No |
| Material de aislamiento | Silicone rubber insulated 7/0.2mm conductors, twisted together with silicone rubber outer jacket |
| Max. Temperatura | +200°C |
| Min. Temperatura | -40°C |
| Screen | No |
| Estándares cumplidos | Colour code (cores & jacket) to IEC-584-3 |
| Tipo de termopar | K |
| Tolerancia | Class 2 to IEC-584 |
