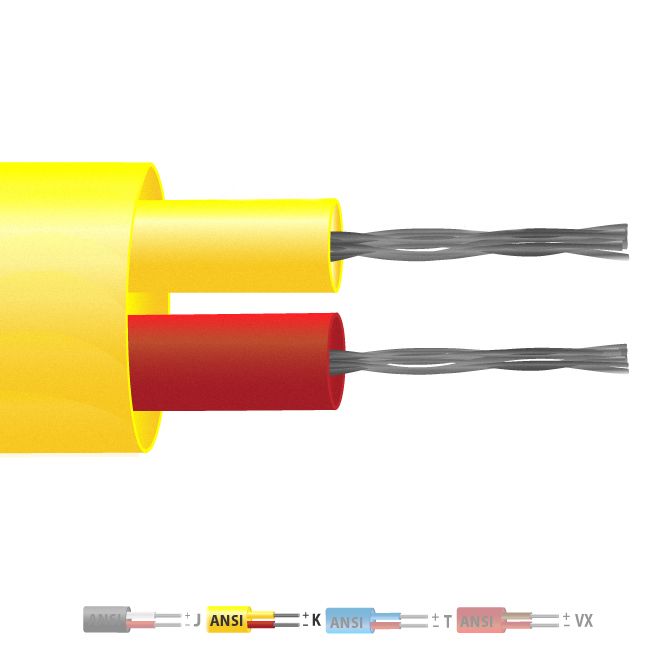

Cable / alambre de termopar plano con aislamiento de PVC tipo K (ANSI)
Cambiar moneda
SKU
XE-2807
16,33 €
13,61 €
Caractersticas tcnicas
| Descripción General | Good general purpose insulation for 'light' environments. Waterproof and very flexible. |
|---|---|
| Longitud del cable | 10, 25, 50, 100 & 200m |
| Cable Type | Flat pair construction |
| Núcleo / hebras | 7/0.2mm |
| Conductor Cross Section 7/0.2 (mm2) | 0.219 |
| Outer Colour | Yellow |
| + Colour | Yellow |
| - Colour | Red |
| Drain Wire | No |
| Material de aislamiento | PVC Insulated |
| Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
| Max. Temperatura | +105°C |
| Min. Temperatura | -10°C |
| + Conductor | Nickel Chromium |
| - Conductor | Nickel Aluminium |
| Screen | No |
| Estándares cumplidos | Colour code (cores & jacket) to ANSI MC96.1 |
| Tipo de termopar | K |
| Tolerancia | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
